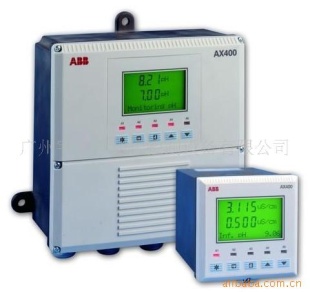

ABB电导率分析仪 AX430

品牌	ABB	型号	AX430, AX433, AX436
测量范围	见技术要点	测量精度	见技术要点
分辨率	见技术要点	电源	见技术要点
尺寸	见技术要点（mm）	用途	见技术要点

Conductivity Analyzer AX430

The Conductivity Analyzer AX430 is designed for use with ABB’s 4 electrode conductivity cells to measure conductivity with exceptional accuracy and performance. It incorporates the latest technology to provide a highly reliable, yet flexible, feature-packed device that satisfies a diverse range of process monitoring and control applications – click on the 'Data' tab to view.

• Range 0 to 2,000 mS/cm
• Concentration measurement up to 15 % NaOH, 18 % HCl,
  20 % H₂SO₄or NaCl, or 40 % H₃PO₄
• Problem-free measurements using auto-compensation of sensor fouling
• Dosing control functionality – long dose alarm and initial charge function
• Wall-, pipe- and panel-mount versions with IP 66 / NEMA 4X ingress protection

Conductivity Analyzer AX433

The Conductivity Analyzer AX433 enables two continuous measurements of mS/cm conductivity with simultaneous local display and transmission via analog outputs. The analyzer is designed for use with ABB’s 4 electrode conductivity cells to measures conductivity, with exceptional accuracy and performance. It incorporates the latest technology to provide a highly reliable, yet flexible, feature-packed device that satisfies a diverse range of process monitoring and control applications – click on the 'Data' tab to view.

• Two sensors, one instrument – reduces cost of investment
• Range 0 to 2,000 mS/cm
• Concentration measurement up to 15 % NaOH, 18 % HCl,
  20 % H₂SO₄or NaCl, or 40 % H₃PO₄
• Problem-free measurements using auto-compensation of sensor fouling
• Dosing control functionality – long dose alarm and initial charge function
• Wall, pipe and panel-mount versions with IP 66 / NEMA 4X ingress protection

Conductivity & pH / Redox (ORP) Analyzer AX436

The Conductivity & pH / Redox (ORP) Analyzer AX436 enables two continuous measurements of mS/cm conductivity and pH / Redox (ORP) with simultaneous local display and transmission via analog outputs. The analyzer is designed for use with ABB’s 4 electrode conductivity cells and pH / Redox systems. It incorporates the latest technology to provide a highly reliable, yet flexible, feature-packed device that satisfies a diverse range of process monitoring and control applications – click on the 'Data' tab to view.

• Two sensors, one instrument - reduces cost of investment
• Accurate measurements up to 14 pH and 0 to 2,000 mS/cm
• Problem-free measurements using auto-compensation of sensor fouling
• Dosing control functionality – long dose alarm and initial charge function
• Wall-, pipe- and panel-mount versions with IP 66 / NEMA 4X ingress protection
• Real-time clock and log book records alarm events
• 2 or 4 current outputs and 3 or 5 relay contacts
