VIR Narrow Bandpass Filters
VIR Narrow Bandpass Filters
VIR Narrow Bandpass Filters
VIR Narrow Bandpass Filters
VIR Narrow Bandpass Filters
VIR Narrow Bandpass Filters

VIR Narrow Bandpass Filters

价 格:
1.8
型 号:
按客户要求
品牌/商标:
激埃特
企业类型:
制造商
新旧程度:
全新
原产地:
深圳龙岗区宝龙工业城锦龙一路
Optical glass:
10000
产品介绍

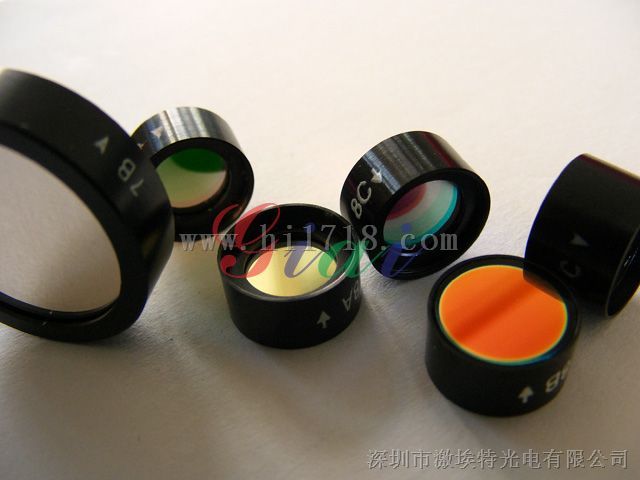

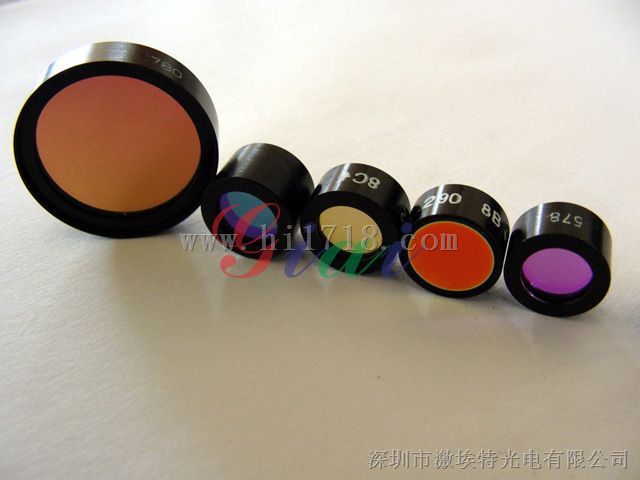

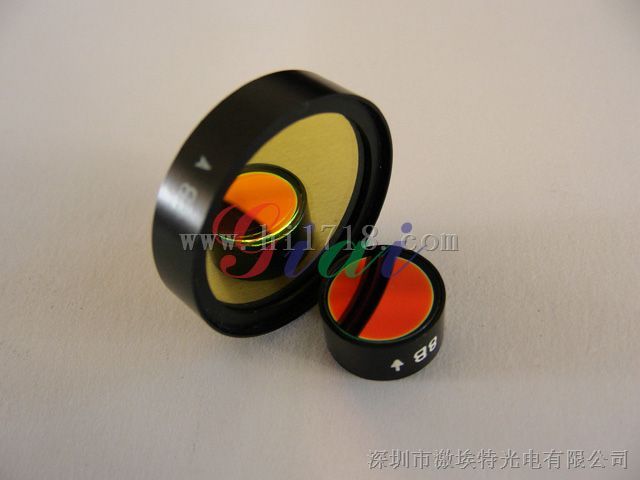

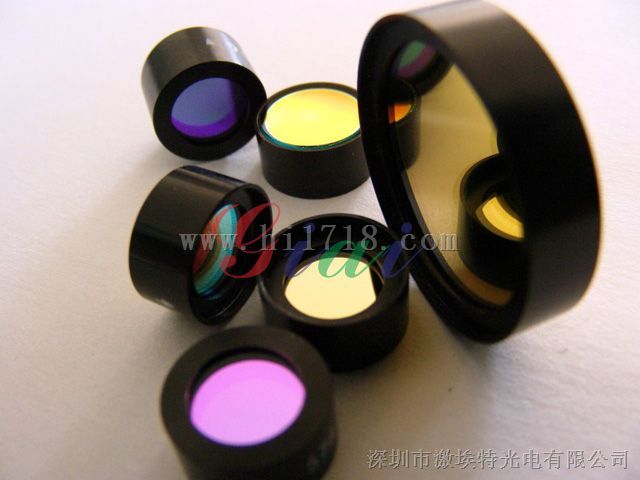

VIR Narrow Bandpass Filters


VIR Narrow Bandpass Filters
价格:
规格:
商品简介:Spectrum Devices, Fluorescence Analytical Instruments, Biochemistry Devices. Medical and clinical instrumentation, Telecommunications, Analytical instrumentation
点击数:1195




详细描述

Giai photonics specialy manufacture of precision interference filters,The spectrum from 340 nm to 3000nm .

Features:

High transmission,High wavelength precision,High passband transmission, High blocking, High stability.

Applications:

Spectrum Devices,

Fluorescence Analytical Instruments,

Biochemistry Devices.

Medical and clinical instrumentation,

Telecommunications,

Analytical instrumentation

VIR Narrow Bandpass Filters

Specifications for VIR Narrow Filters

Central Wavelength Tolerance:

+/- 2nm

Bandwidth Tolerance:

+/- 2nm

Blocking :

OD=4 or OD>5

Diameter Sizes :

10mm,12.0mm,15.0mm, 25.4mm,40mm

Clear Apertures:

8mm,10.0mm, 10.5mm, 24mm,38mm

Thickness :

1.5mm, 2.0mm, 4.0mm,8.5mm

Temperature Limits

-50o C to 80oC



企业名片-- 深圳市激埃特光电有限公司
联系人:李丹 女士
经营模式:工厂
电话:0755-89926386
手机:18929308770
传真:0755-89926386
即时通讯:QQ:2355538418
地址:深圳龙岗区宝龙工业城锦龙一路深长岗科技 园

Code No.

Center Wavelength (nm)

BandWidth(nm)

Peak Transmittance
  (%)

Diameter (mm )

GIAI-VBP405

405

10

35

25.4

40

GIAI-VBP415

415

10

40

25.4

40

GIAI-VBP440

440

10

50

25.4

40

GIAI-VBP450

450

10

50

25.4

40

GIAI-VBP455

455

10

50

25.4

40

GIAI-VBP480

480

10

50

25.4

40

GIAI-VBP488

488

10

50

25.4

40

GIAI-VBP492

492

10

50

25.4

40

GIAI-VBP505

505

10

50

25.4

40

GIAI-VBP508

508

10

50

25.4

40

GIAI-VBP510

510

10

50

25.4

40

GIAI-VBP514

514

10

50

25.4

40

GIAI-VBP532

532

10

50

25.4

40
