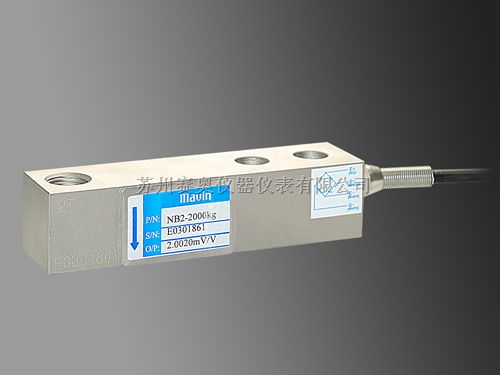

台湾Mavin称重传感器 NB2

Specification 技术参数
Rated Capacities 0.5，1，1.5，2，2.5，3，5，7.5，10 (t)
Rated Output 2.0 mV/V±0.25%；3.0 mV/V±0.25%
Non-linearity 0.03% R.O.
Hysteresis 0.03% R.O.
Repeatability 0.03% R.O.
Creep(30min) 0.03% R.O.
Temperature Effect On Output 0.002%R.O./℃
Temperature Effect On Zero 0.003%R.O./℃
Zero Balance ±0.0200 mV/V
Input Impedance 390±15 Ω
Output Impedance 350±5 Ω
Insulation Impedance ≥5000MΩ/(50VDC)
Safe Overload 150% R.O.
Ultimate Overload 200% R.O.
Operating Temperature Range -20~60 ℃
Recommended Excitation 5~12 VDC
Maximum Excitation 15 VDC
Construction Steel Alloy
Protection Class IP67 / IP68
Cable φ5×3 m；φ5×6 m
Mode of Connection Red（EXC+）,Black（EXC-）,Green（SIG+）,White（SIG-）
