涡轮流量计FR120D

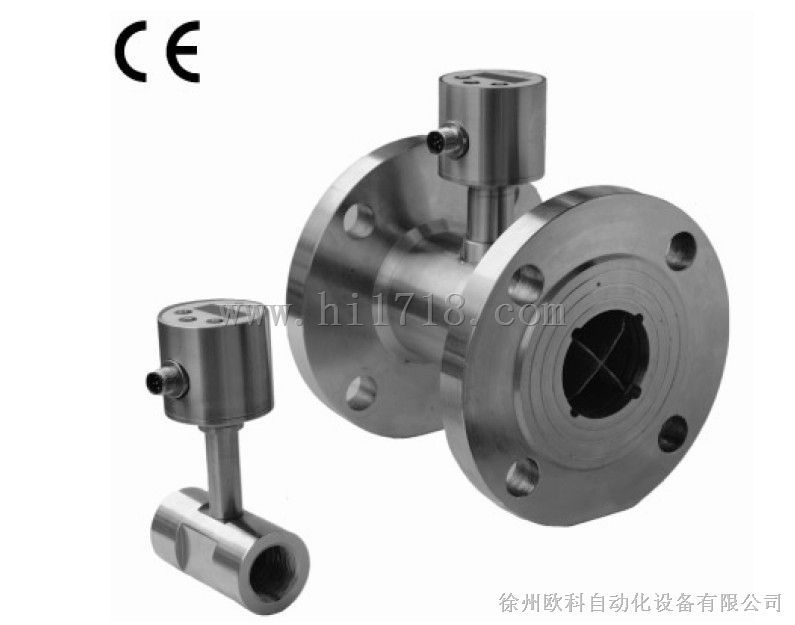

BANNA 数显涡轮流量计 FR120D

原理，结构

FR12D包含一个塑料涡轮,在单位时间内,管道内介质的流量与涡轮转速成

正比传感器将涡轮的转速转化成脉冲信号,用于显示, 报警, 瞬时计量和累积

计量.

应用

液体配送系统，循环水测量，过滤系统，化工生产，泵保护，适用

于水或粘度接近水的油类。

技术参数
适用管径:   DN04...DN250
远传距离: <500m
重复性: ±0.5%总量程
线性度:±1%总量程
工作电压:12…30Vdc
开关输出信号:推挽输出
模拟输出信号:4…20mA
工作电流:<50mA
显示： 红色9mm LED，范围 -999…9999
耐压:40MPA（特殊耐压可定制）
工作温度: -20…90℃
防护等级:IP65
材料: 电子仓-不锈钢
         接液管道-不锈钢
         涡轮－合金钢
接线方式: M12×1 4芯接插件

可选型号：
FR120D-0041SGI0.25Q
FR120D-0042SGI0.25Q
FR120D-0041AGI0.25Q
FR120D-0042AGI0.25Q
FR120D-0043AGI0.25Q
FR120D-0081SGI0.6Q
FR120D-0082SGI0.6Q
FR120D-0081AGI0.6Q
FR120D-0082AGI0.6Q
FR120D-0083AGI0.6Q
FR120D-0101SGI0.6Q
FR120D-0102SGI0.6Q
FR120D-0101AGI0.6Q
FR120D-0102AGI0.6Q
FR120D-0103AGI0.6Q
FR120D-0151SGI6Q
FR120D-0152SGI6Q
FR120D-0151AGI6Q
FR120D-0152AGI6Q
FR120D-0153AGI6Q
FR120D-0201SGI7Q
FR120D-0202SGI7Q
FR120D-0201AGI7Q
FR120D-0202AGI7Q
FR120D-0203AGI7Q
FR120D-0251SGI10Q
FR120D-0252SGI10Q
FR120D-0251AGI10Q
FR120D-0252AGI10Q
FR120D-0253AGI10Q
FR120D-0401SGI20Q
FR120D-0402SGI20Q
FR120D-0401AGI20Q
FR120D-0402AGI20Q
FR120D-0403AGI20Q
FR120D-0501SFH40Q
FR120D-0502SFH40Q
FR120D-0501AFH40Q
FR120D-0502AFH40Q
FR120D-0503AFH40Q
FR120D-0651SFH80Q
FR120D-0652SFH80Q
FR120D-0651AFH80Q
FR120D-0652AFH80Q
FR120D-0653AFH80Q
FR120D-0801SFH75Q
FR120D-0802SFH75Q
FR120D-0801AFH75Q
FR120D-0802AFH75Q
FR120D-0803AFH75Q
FR120D-1001SFH200Q
FR120D-1002SFH200Q
FR120D-1001AFH200Q
FR120D-1002AFH200Q
FR120D-1003AFH200Q
FR120D-1501SFH400Q
FR120D-1502SFH400Q
FR120D-1501AFH400Q
FR120D-1502AFH400Q
FR120D-1503AFH400Q
FR120D-2001SFH800Q
FR120D-2002SFH800Q
FR120D-2001AFH800Q
FR120D-2002AFH800Q
FR120D-2003AFH800Q
FR120D-2501SFH1000Q
FR120D-2502SFH1000Q
FR120D-2501AFH1000Q
FR120D-2502AFH1000Q
FR120D-2503AFH1000Q
