- 企业类型：制造商
- 新旧程度：全新
- 原产地：东莞

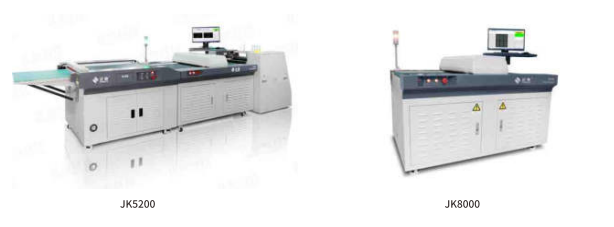

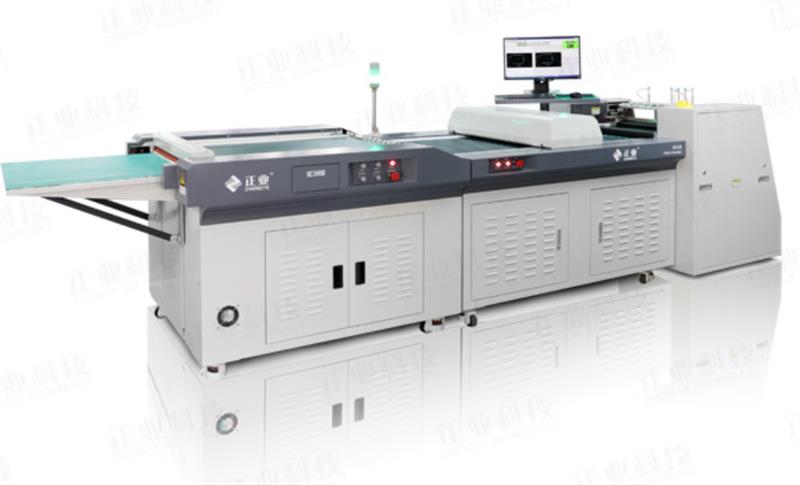

在线检孔机（JK5200/JK8000）
用途
检孔机主要用于PCB钻孔板及成品板的钻孔品质检查和分析。可对PCB钻孔板及成品板少孔(漏钻、塞孔)、多孔、孔内毛刺、孔大、孔小、“一”字型槽孔的长、宽、角度以及其它不规则异型孔形状等缺陷进行自动检测，并自动判定NG/OK进行分类的设备。
特征
1、精准:采用高精度CIS扫描系统、以及自动定位、图像处理和检测分析等技术;
2、高效:配备多通道分检装置、小板件时支持多通道同时检测、标机可同时检测两块板、可定制3, 6通道同时检测;
3、特色:使用正业科技自主研发软件，具备网路检修站功能、可使用多部终端同步检查NG板缺陷，并快速维修。
技术参数
项目ITEM | JK5200 | JK8000 | |
外形 Dimensions | 长Length | 扫描机+分拣装置:3510 mm;无分拣装置:1530mm | 扫描机：1550mm |
宽Width | 1160mm | 1280mm | |
高Height | 1050mm | 1520mm | |
CIS | 接触式图像传感器Contact image sensor | ||
光源Light | 条形红光LED光源Bar red LED light source | ||
厚径比Maximum diameter ratio | 20:1 | ||
可测板厚Measurable thickness | 0.3mm~10mm，厚度小于0.3mm的板需提供样品确认Plates with thickness less than 0.3mm shall be submitted for sample confirmation | ||
测板大小Plate size | 宽度width: 80~650mm，长度length100~650mm | 宽度width:80~800mm，长度length100~800mm | |
孔径范围Pore size range | Φ0.10mm~Φ10mm | ||
孔边距Min margin of punching hole | 0.1mm | ||
被测板最多 | 50万(圆孔)(round hole) | ||
测量速度measuring speed | 扫描部分四挡可选 (The four gears of the measured velocity scanning part were available):3.0±0.5m/min, 6.5±0.6m/min,10±0.8m/min,12.5±0.8m/min。钻孔板The drill plate is up to 6.5m/min | ||
重复精度(圆孔)Repeat precision (round hole) | ±30μm | ||
重复精度(非圆孔)Repeat precision (non-circular hole) | 一字槽孔:±75μm;不规则孔:150um Slot: plus or minus 75um; Irregular holes: 150um | ||
检测孔径精度(圆孔)Aperture accuracy (round hole) | +/-15um(孔径aperture≤1.0mm) +/-25um(4mm>孔径aperture>1.0mm) +/-30um(孔径aperture≥4.0mm) | ||
检测内容The content of detection | 少孔(漏钻、塞孔)、多孔(多钻，一分为二)、孔内异物、孔大、孔小、“一”字型槽孔的长、宽、槽孔毛刺以及其它不规则、异型孔缺陷、板长，宽尺寸缺陷等检测Missing Hole (leaky holes, plug holes),holes (mufti-drilling, bisecting), foreign body inside the holes, large holes, small holes, the length, width, burr of "one"type hole and other defects of irregular and irregular holes, plate length, width and size,etc | ||
检查线数Inspection line number | 标准机可:单线，2线;(3线以上，请单独询价)standard machine: single line, 2 lines;(above line 3, please separately inquire) | ||
电脑computer | 工控机，CPU:i5系列;内存:8G;硬盘:1T;操作系统:windows7*64Electric brain industrial computer, CPU: i5 series;Memory: 8G;Hard disk: 1T;Operating system: windows7*64 | ||
电源Power source | 220V(1±10%)/50Hz | ||
功率Power | 扫描、分拣装置:2KW;无分拣装置:1.2KWPower scanning and sorting device: 2KW;No sorting device: 1.2kw | ||
操作环境Operating environment
| 温度:20℃~40℃;湿度:40%-70%;环境中不含酸碱气体;生产板要求:干燥，不含酸性/碱性液体(防止设备被腐蚀);设备需互联网连接以便远程诊断。待测板要求:待测板翘曲度不允许超过IPC对角线0.75%、需高压水洗并烘干后，如板面不清洁会影响检测结果。temperature: 20℃ to 40℃;Humidity:40-70%;下here is no acid base gas in the environment. Production board requirements: dry, no acid/alkaline liquid (to prevent equipment corrosio);The device requires an Internet connection for remote diagnosis. Requirements for the board to be tested:the warping degree of the board to be tested shall not exceed 0.75% of the IPC diagonal line. After being washed with high pressure and dried, the test results will be affected if the board surface is not clean. | ||
