Produ IntroduionQuick details.
Place of Origin: Zhejiang, China (Mainland)
Brand Name: Mseed
Model Number:M100SCR
Input Voltage: 220/230V
Operating Temperature: 5℃~55℃
Output Frequency: 50 or 60Hz
Temperature sensor length: 1.5m
IP cl: IP 68
Battery working life: >6 years
Features
.35mm standard DIN rail installation, complying with standard DIN EN50022. Or front board setting (mounting holes center distance 63mm), users can choose any one bye themselves.
.Six pole width (Modulus 12.5mm), complying with standard /T7121-1993.
.Have two tariffs, and port of set the tariff, input control voltage 0-90 Vac, set up tariff F1, input control voltage 150-400 Vac, set up tariff F2, the tariff conversion is controlled by timer outside or similar equipment.
.May sele cycle display (default) or push the button itemize display, it can display 6 data at most. Can sele the data which displayed. The decimal median which displayed can choose set one or two.
.Use memory that is not lost easily, the data can be kept forever after power cut off.
.A port of pulse output pive (polarity), complying with standard IEC 62053-31.
.There are far infrared and a port of RS485 communication data. It is use for setting and reading the meter, communication proteion complying with standard DL/T645-1997.
.Six LED instruions respeively power state, signal of power impulse, the direion of the trend of load current, the state rates just now and the data communications state.
.Single direion measure single phase two wire aive power consumption. It is nothing with direion of the trend of load current. Complying with standard IEC62053-21.

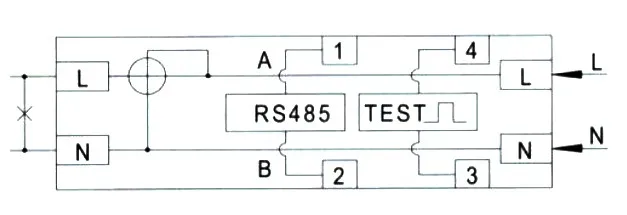

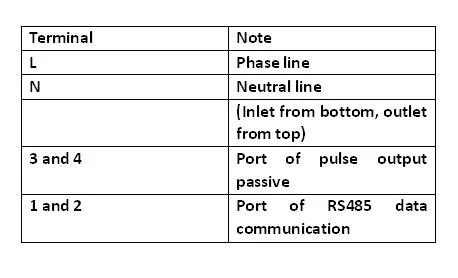

.Standard configuration te S conneion(Inlet from bottom, outlet from ) for dire conne to use, we can also choose another te of conneion, and use (produ configuration code is BN) and PT & (produ configuration code is BP) for operation.
.Standard configuration extended terminals cover, may sele short terminals over, in order to prote to use elericity safely.
Applications
Model M100SCR single phase eleronic multi-rate DIN rail aive energy meter is a kind of new style single phase two wire aive energy meter, it adopt micro-eleronics technique, and imported large scale integrate circuit, use advanced technique of dial and T techniques, etc. It has completely its independent intelleual property rights and minimum size, and also a new single phase two wire aive energy meter. It has already ped the test of the international authority KEMA. The meter completely accord with relevant technical requirements of cl 1 single phase aive energy meter stipulated in international standard IEC62053-21. It can accurately and direly measure 50Hz or 60Hz aive energy consumption from single phase AC elericity net. This meter has seven dis LCD monitors shows various consumption data and information. And there are far infrared and RS485 communication module in it. It's used for setting and reading the meter. Conta with all kind of AMR system conveniently. It has following features: Good reliability, all volume, light weight, specious nice appearance, convenient installation, etc.
Dimension
Parameters| Model | Accuracy | Rated Voltage(V) | Rated Current(A) | Starting Current(A) | Insulation Performance |
| M100SCR | Cl 1 Cl 2 | 220V 120V | 2.5(10),3(15) 5(20),10(30) 15(90),20(100) 5(40),5(100) | 0.4%lb 0.5%lb | AC voltage 2kV for 1 minute,impulse voltage 6kV |
Packing & Delivery
Certifications
