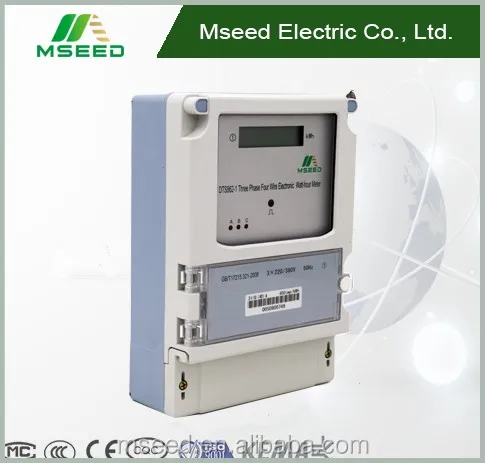

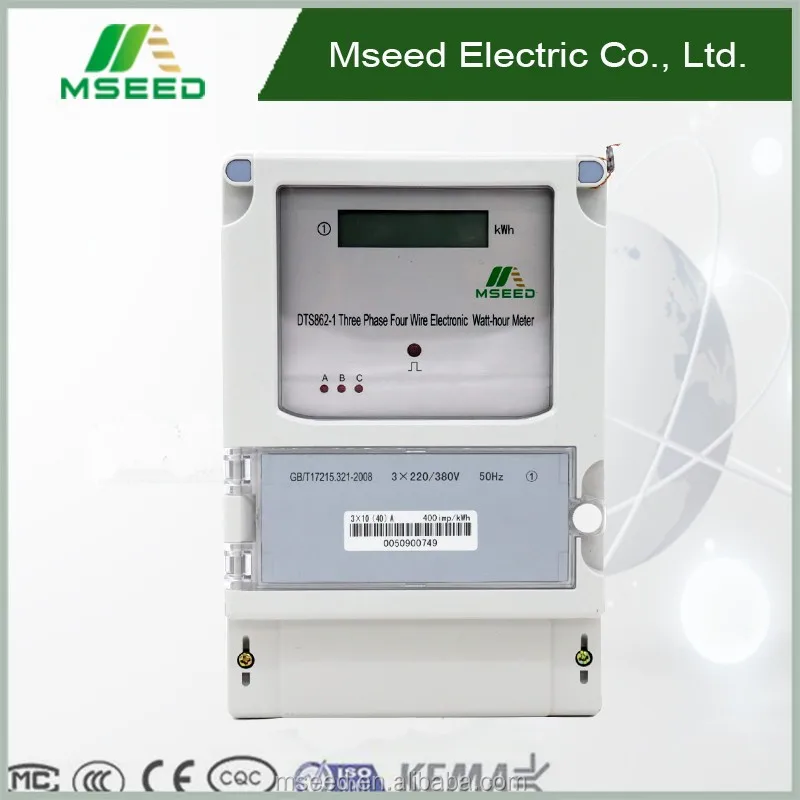

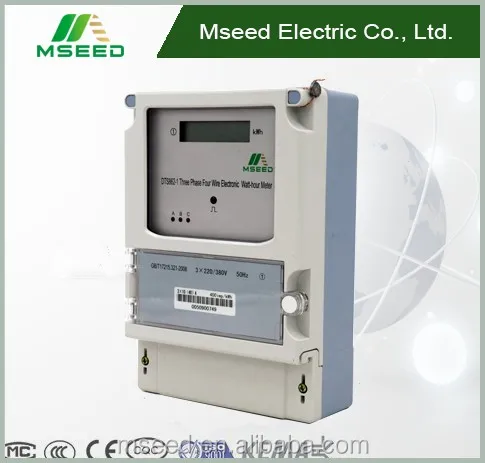

Product IntroductionQuick details.
Place of Origin: Zhejiang, China (Mainland)
Brand Name: Mseed
Model Number:DTS862-1
Phase: Three Phase
Input Voltage: 220/380V energy meter mini
Dimensions: 216*145*72(mm)
Operating Temperature: -25℃~+55℃
Output Frequency: 50 or 60Hz three phase energy meter
Features1. Stable measuring accuracy, general speaking, it would be free from effect of frequency, temperature, voltage or high order harmonic. After leaving the factory, it is unnecessary to make further regulation to the complete machine, it is allowable to prolong the verification period, which sharply reduces the testing and inspection work of power department, it has obviously advantage in reliability when comparing with other similar products.
2. Bi-directional measuring function, it is able to measure out the forward and reverse active energy accurately, and the reverse active energy would also be reckoned in forward value. energy meter mini
3. It is able to reserve the data of electric quantity permanently without help of standby battery.
4. The register will be driven by single chip directly, preventing pulse-loss phenomenon during power on or off, which guarantees consistency of meter reading data and register indicating value, avoids unnecessary dissension due to inconsistency of data.
5. Adoption of optical coupling isolated pive pulse output interface . three phase energy meter
6. This meter is featured with wide load, high accuracy, high reliability, high sensitivity, straight error curve, low power consumption, all volume, light weight, energy saving, material saving, direct register display, etc.
| Te | Cl index | Reference voltage Un | Rated current |
| DSS862-1 DTS862-1 | Cl 1 Cl 2 | 3×100V | 3×1.5(6)A |
| 3×380V | 3×1.5(6)A | ||
| 3×57.7/100V | 3×1.5(6)A | ||
| 3×220/380V | 3×1.5(6)A | ||
| 3×2.5(10)A | |||
| 3×5(20)A | |||
| 3×10(60)A 3×15(60)A | |||
| 3×20(80)A 3×30(100)A |
| Load current | Power factor | Elementary error（%） | |
| Cl 1 | Cl 2 | ||
| 0.05Ib | 1.0 | ±1.5 | ±2.5 |
| 0.1Ib～Imax | 1.0 | ±1.0 | ±2.0 |
| 0.1Ib | 0.5(lag) | ±1.5 | ±2.5 |
| 0.8(advance) | ±1.5 | - | |
| 0.2Ib～Imax | 0.5(lag) | ±1.0 | ±2.0 |
| 0.8(advance) | ±1.0 | - | |
1. Starting: under conditions of reference voltage,reference frequency and power factor is 1.0, the meter should be able to start and measure the electric energy normally when meter of cl 1 is 0.4%Ib and meter of cl 2 is 0.5%Ib.
2. ing: anti-er logical design, apply a reference voltage of 1.15 times to the voltage circuit, while there is no current in current circuit, testing output of the meter shall not produce more than one pulse.
3. Power consumption: ≤2W (5VA). three phase energy meter

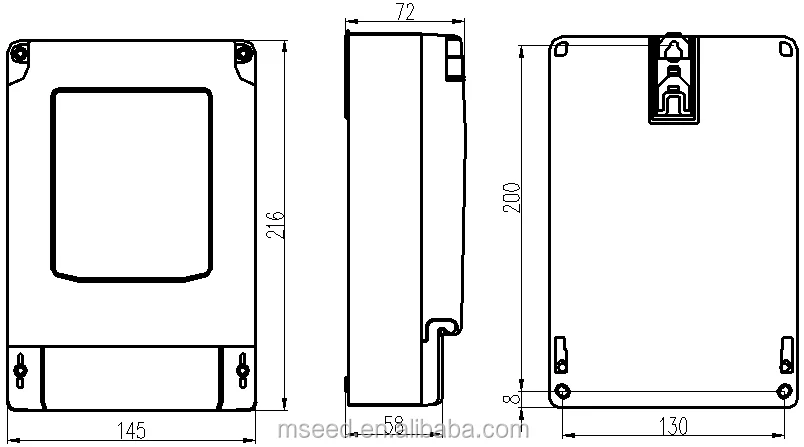

4. Ambient conditions Standard working temperature: -25℃～55℃ Limiting working temperature: -25℃～60℃ Note: limiting working temperature for special requirements: -40℃～70℃Dimension
Packing DetailsBeing packed according to the international standard is to guarantee safe delivery during the transportation.
Why Choose Us?Professional manufacturer with internationally standard production lines and a devoted technical team.
?Strict test procedure with advanced test equipment
?Responsive and responsible service team.
?Door to door service when needed.
?Helpful and enthusiastic in developing the buyers’ business.
?Treat your career as our career.
Certifications:
