询价
- 品牌/商标：MAC
- 企业类型：贸易商
- 原产地：美国

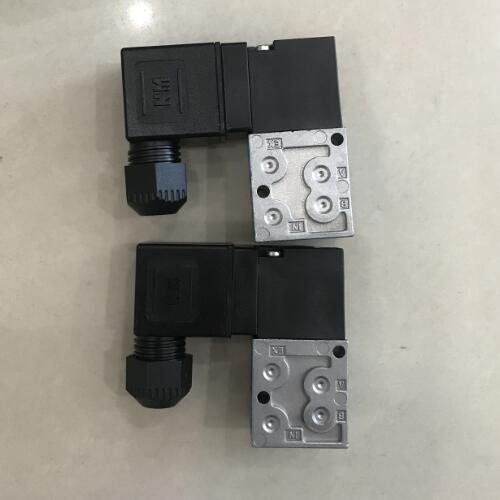

美国MAC先导式电磁阀,美国MAC气控阀
Not required, if used select a medium aniline point lubricant (between 180°F to 210°F)
0°F to 120°F (-18°C to 50°C)
1/8” : (0.9 Cv), 1/4" : (1.3 Cv), 3/8" : (1.35 Cv)
Epoxy encapsulated - class A wires - Continuous duty.
? Balanced poppet pilot valve for high flow, precise repeatability, and consistent operation.
Compressed air, vacuum, inert gases
Internal pilot : single operator and 3 positions : 25-150 PSI double operator : 10-150 PSI
External pilot : vacuum to 150 PSI
Single operator and 3 positions : 25-150 PSI Double operator : 10-150 PSI
-15% to +10% of nominal voltage
～ Inrush : 10.9 VA Holding : 7.7 VA
24 VDC (5.4 W) Energize : 9 ms De-energize : 6 ms
120/60 Energize : 5-12 ms De-energize :6-13 ms
~ Inrush : 7.6 VA Holding : 4.8 VA
External Pilot : Vacuum to 120 PSI
From Lead wire length options choose A through F
** From Lead wire length options choose 0 through F
Note: When coil is above 30 volts,
? Unique patented MACSOLENOID® for fastest possible response times.
美国MAC先导式电磁阀,美国MAC气控阀
