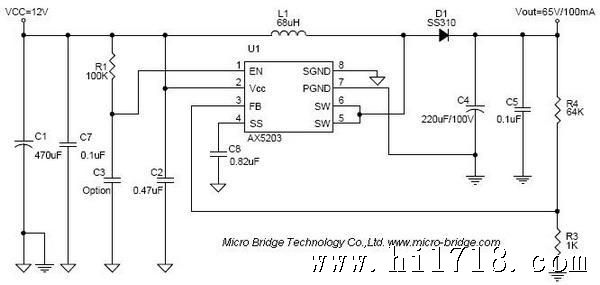

AX5203-Step-up PWM DC/DC Converter
DataSheet
GENERAL DCRIPTION
The AX5203 is high efficient step-up DC/DC converter. Large output current is possible having a built in internal N channel MOSFET, and using an external coil and diode.
The AX5203 can be operated at switching frequenci of 500 kHz allowing for easy filtering and low noise, the size of the external components can be reduced.Output voltage is programmable with 1.0V of standard voltage supply internal, and using externally connected components, output voltage (FB) can be set up at will. The soft-start time can be programmed by outside capacitor; the function prevents overshoot at startup. Build inside Current limit, Thermal Shutdown and enable functions.
FEATUR
- Input voltage：4.5V to 23V
- Output voltage：5 V to 68V
- Duty ratio：0% to 85% PWM control
- Oscillation frequency：500KHz.
- Enable and Thermal Shutdown function.
- Internal Current limit.
- Built-in N-channel MOSFET

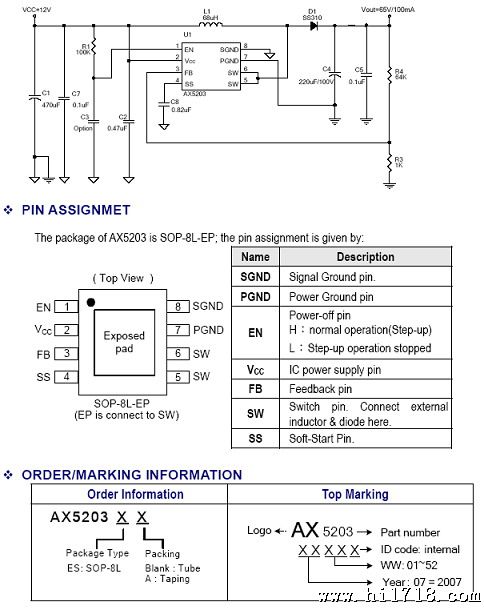

- SOP-8L with Exposed pad Pb-Free package.
