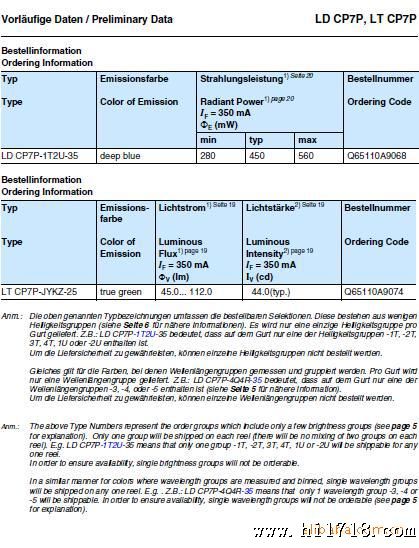

LD CP7P-1T2U-35
SIZE:3.1 x 3.1 x 2.33mm
Featur
•package:D ceramic package with silicon rin with lens
•tical Luminous Flux:515 mW (deep blue); 93 lm (true green) at 350 mAand up to 1219 mW (deep blue); 172 lm (true green) at 1 A
•feature of the device:all size high-flux LED for slim digns
•wavelength:455 nm (deep blue); 528 nm (true green)
•viewing angle:80°
•technology:InGaN
•optical efficiency:46% (deep blue); 83 lm/W (true green) at 350 mA

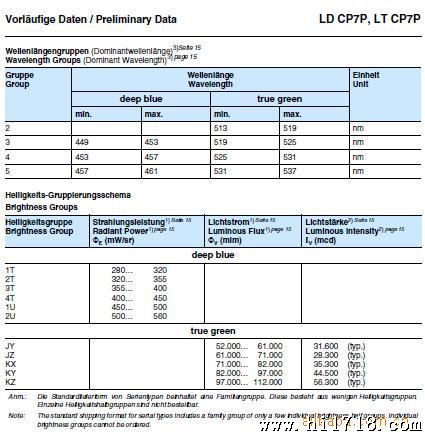

•grouping parameter:luminous flux, wavelength

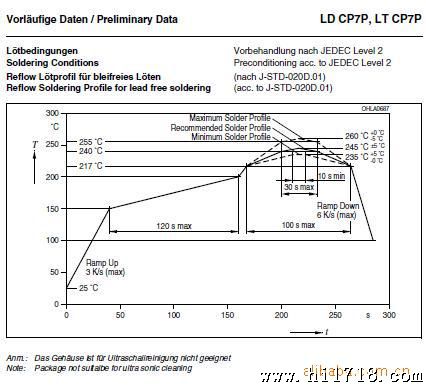

•soldering methods:reflow soldering
•preconditioning:acc. to JEDEC Level 2
•taping:8 mmtape with 600/reel, ø180 mm
•D-withstand voltage:up to 2 kV acc. toJD22-A114-D
•Superior Corrosion Robustns:details seepage 12
Applications
•Architectural lighting
•Stage and entertainment lightin
•Retail and shop lighting
•Color changing fixtur
•Remote-phosphor fixtur
