General Description
The LD 7266A is an ideal charge control IC for flash units with internal soft start, adjustable charging current and output voltage. It provides a proprietary charging algorithm to charge photoflash capacitor quickly and efficiently. The LD 7266A could operate in constant charging current mode or the mode with lowering the charging current at lower battery voltage. As well, the built-in 45V power switch and IGBT driver can save the board space.
The LD 7266A is available in a space-saving MSOP10 or DFN-10 package and is ideal for DSC flash unit.
… Patent pending
Features
• Adjustable Charging Current and Output Voltage
• 1.8V~5V Battery Voltage Range
• Tiny Transformer
• Totem-Pole IGBT Driver
• Integrated 45V power switch
• Output Voltage Overcharge Protection
Applications
• DSC Flash Unit
• Film Camera Flash Unit

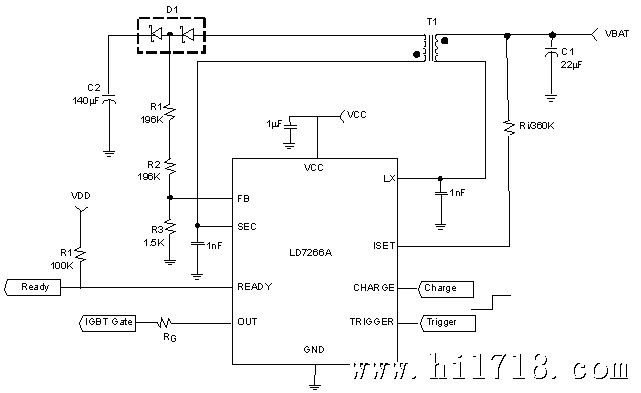

Tical Application
click to view large size
