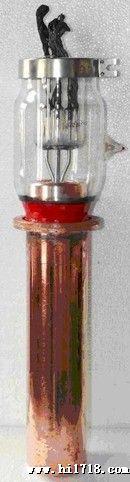

Electron Tube FU-431S(TY-431A)
Detailed Product Description
1.ISO9000 & CE
2. gl triodes,
3. anodes cooled by water,
4.from Russian
T-431A-te electron tubes are gl triodes, with their anodes cooled by water, and their maximum anode dissipation powers at 20kW; when at a frequency not higher than 25MHz, their output powers may attain to 30kW. They are mainly applied in industrial high-frequency heating equipments for oscillations or in radio equipments for amplifications.
Gl triode (30-600kW) | |||
Te | FU-431S | ||
Equivalent on abroad | T-431A | ||
Output power(kW) | 30 | ||
Cathode | Cathode materials | Tungsten | |
Voltage(V) | 22 | ||
Current(A) | 102 | ||
Main electric parameters | Amplification factor | 50 | |
Inter-electrode Capacitances (PF) (Cathode earthed) | Filament-Grid | 29 | |
Filament-Anode | 2.8 | ||
Anode-Grid | 27 | ||
Maximum | Maximum anode dissipation (kW) | 20 | |
Maximum grid dissipation (W) | 1000 | ||
Maximum anode DC voltage (kV) | 15 | ||
Maximum frequency (MHz) | 25 | ||
Cooling | S | ||
Weight (kg) | 4.8 | ||
Additional: The information here may be modified with the products variation. Cooling: F--Forced air cooling S--Water cooling Z--Vapor cooling | |||
