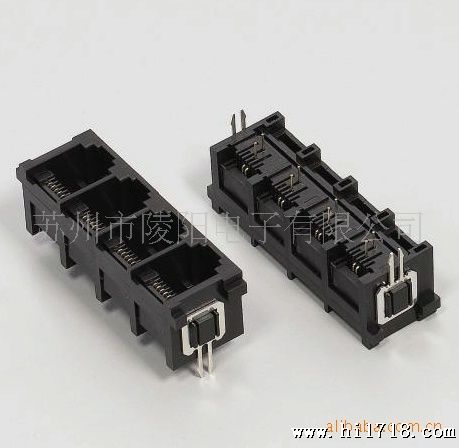

一、产品图片：
二、产品描述：
PCB MODULAR JACK AND RJ45+TRANSFORMER SPECIFICATIONS
Electrical
1.Current Rating:1.5 amps
2.Voltage Rating:125vac
3.Insulation Ristance:500 MΩmin
4.Contact Ristance:30 MΩmax
5.Withstanding Voltage:AC 1000V RMS 50Hz or 60Hz 1 min
Mechanical
1.Insertion Force:2.2KG.F max
2.Retention Strength:7.7KG.F min between jack and plug
3.Durability:600 mating cycl min
Material
1.Housing:ABS RIN(UL94V-0) PBT(UL94V-0) PA66(UL94V-0) PA46(UL94V-0)
2.Contact Wire:Diameter 0.45mm phosphor bronze gold plating over nickel
0.35mm thickns phosphor bronze alloy selective gold plating over nickel
3.Shield:0.20~0.25mm thickns br with tin plated
4.Gold Plating:3u inch,6u inch,15u inch,30u inch,50u inch
Environmental
Working Temperature:-40℃ to 70℃
