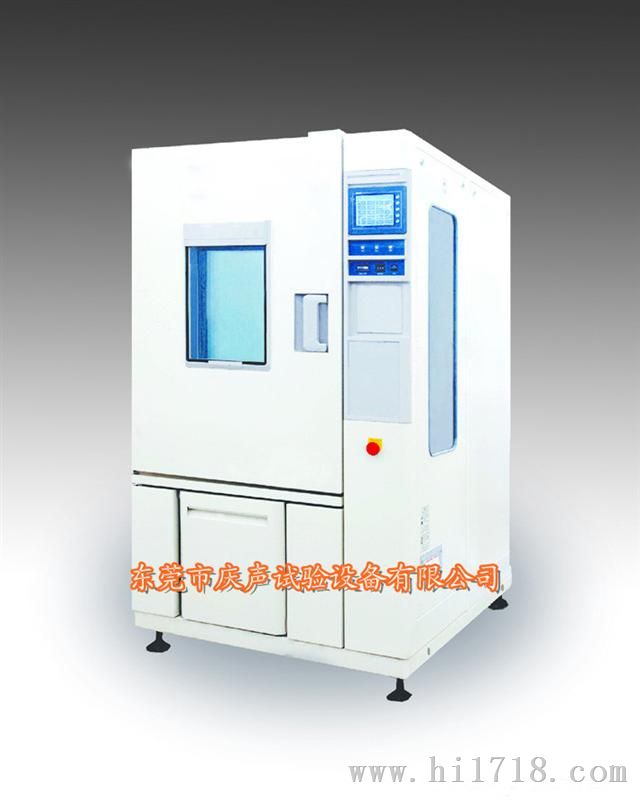

小型高低温试验箱

产品价格：: 电议

产品型号：: FQS

供应商等级：: 免企业未认证

经营模式：: 工厂

企业名称：: 东莞市庆声试验设备有限公司

所属地区：: 广东省东莞市

发布时间：: 2014/4/29 7:55:02

QQ咨询进入商铺

企业档案

东莞市庆声试验设备有限公司

免企业未认证证营业执照未上传

经营模式：工厂

所在地：广东省东莞市

主营产品：冲击试验机，环境试验箱，恒温恒湿试验箱，老化试验箱，盐雾试验箱，干燥箱

进入商铺在线咨询

产品搜索

最新产品

: 紫外线老化寿命试验箱QU-UV2; 电议

: 紫外线老化试验机QU-UV1; 电议

: 蒸汽试验机ZQ-4; 电议

: 紫外线试验机配送UVB313灯管; 电议

: 珠海恒温恒湿箱/高低温试验箱; 电议

: 蒸汽老化加速寿命试验机; 电议

产品信息
联系方式

手机访问

扫一扫
进入手机店铺

品牌/商标：KSUN
企业类型：制造商
新旧程度：全新

◆小型高低温试验箱主要为电子零部件、工业材料、成品在研发、生产和检验各环节的试验提供恒定湿热、复杂高低温交变等试验环境和试验条件，适用于电子电器、通讯、化工、五金、橡胶、玩具等各行业。

Mainly for electronic components, industrial materials, finished products in R & D, production and testing the test with constant damp-heat, complex alternating high and low temperature test environment and test conditions, apply to electronic and electrical appliances, communications, chemical, metal, rubber, toys and other industries

◆小型高低温试验箱有24种如下叫法There are 24 known as follows：

恒温恒湿箱/恒温恒湿试验箱/恒温恒湿实验箱/恒温恒湿机/恒温恒湿试验机/恒温恒湿实验机/可程式恒温恒湿箱/可程式恒温恒湿机/可程式恒温恒湿试验箱/可程式恒温恒湿实验箱 /可程式恒温恒湿试验机/可程式恒温恒湿实验机/湿热交变箱/湿热交变试验箱/湿热交变实验箱/湿热交变机/湿热交变试验机/湿热交变实验机/高低温箱/高低温试验箱/高低温实验箱/高低温机/高低温试验机/高低温实验机

Constant temperature and humidity box / constant temperature and humidity test chamber / constant temperature and humidity test box / constant temperature and humidity / temperature and humidity testing machine / constant temperature and humidity testing machine / programmable temperature and humidity box / programmable constant temperature and humidity test chamber / programmable temperature and humidity box / programmable constant temperature and humidity / programmable constant temperature and humidity testing machine / programmable thermostat humidity test machine / humid heat box / humid heat test box / humid heat test box / humid heat machine / humid heat test machine / humid heat test machine / GDW / high low temperature test box / high and low temperature experiment box / high temperature / high and low temperature testing machine / high temperature testing machine

◆小型高低温试验箱产品特色Product characteristics

◆小型高低温试验箱采上方排热方式，节省机台所占用之空间及达到散热效果.
Mining above heat rejection mode, saving occupied space and platform to achieve the best cooling effect

采用P.P非金属断热隔热材质之门缝设计，可减少四分之一以上能源浪费及控制效果。

Using P.P non metal thermal insulation material of door design, can be reduced by more than 1/4energy waste and control effect
轻巧便易之前方加水补给方式，可自动水回收及净水过滤装置。

Lightweight easy front water supply mode, automatic water recycling and water filtering device.
简便新颖之门把手设计，开启方便及箱门开启时不会产生震动。

Simple door handle design, convenient opening and the box door is opened does not generate vibration.

◆小型高低温试验箱技术参数Technical parameters

产品型号Product model		FQS-80		FQS-150	FQS-225	FQS-408	FQS-800	FQS-1000
内部尺寸 Internal dimensions W×H×D(cm)		40×50×40		50×60×50	50×75 ×60	60×85×80	100×100×80	100×100×100
外部尺寸 External dimensions W×H×D(cm)		97×136×97		107×145×107	107×161×118	117×171×128	165×195×128	165×195×170
性能Performance	控制方式Control mode		平衡调温调湿方式(BTHC)PID智能调节Balanced temperature and humidity control ( BTHC ) PID intelligent regulator
	温度范围Temperature range		0℃～150℃,-20℃～150℃,-40℃～150℃,-70℃～150℃
	湿度范围Humidity range		20%～98%RH
	温湿度均匀度Temperature and humidity uniformity		±2℃,±3%RH
	温湿度波动度Temperature and humidity fluctuation		±0.3℃,±2.5%RH
	升温速率Heating rate		≥3℃/min
	降温速率Cooling rate		≥1℃/min
材质Texture of material	内箱材质Inner box material		SUS304光亮不锈钢板SUS304bright stainless steel plate
	外箱材质Carton box material		SUS304拉丝不锈钢板或防锈处理冷扎钢板SUS304 brushed stainless steel plate or antirust treatment of cold rolling steel plate
	保温材质Heat insulation material		超细玻璃棉+聚胺脂泡沫Superfine glass wool and polyurethane foam
调节器Regulator	制冷机Refrigerator		全封闭法国泰康(或半封闭德国谷轮)压缩机Full closed French Taikang ( or semi-enclosed Germany Copeland compressor )
	制冷剂Refrigerant		R23/R404A
	冷凝方式Condensation method		风冷Air cooled
	加热器Heater		镍铬合金不锈管加热器Nickel chromium alloy stainless tube heater
	气流方式Airflow mode		宽带式强迫气流循环(上出下进)Broadband type forced air circulation ( the lower )
控制器Controller	操作界面Operation interface		液晶触摸显示屏,中英文切换(韩国TEMI880)LCD touch screen, switching in both English and Chinese (South Korea's TEMI880)
	运转方式Operation mode		恒定运转,程序运转Constant running, operational procedures
	程序记忆容量Program memory capacity		120组可编程序,每个程序999段120 groups of programmable, each program to 999segment
	分辩率Resolution		温度:0.1℃;湿度:0.1%RH Temperature:0.1 ℃; humidity:0.1%RH
	通讯功能Communication function		RS-232接口 RS-232 interface
	附属功能Auxiliary function		上下限报警,自诊断,报警显示(故障原因),定时装置(自动开关机)Upper and lower limit alarm, time since diagnosis, alarm display ( fault ), a timing device ( automatic switching machine)
标准配置Standard configuration			观察窗1个,测试孔1个,样品架2层,荧光灯一个,供水箱1个 1 observation windows, test hole1, a sample holder2, a fluorescent lamp, a water tank1
安全装置Safety device			无熔丝开关,防干烧装置,水系统保护装置,极限高低温保护,温度偏差报警,超压,过载,缺水,缺相等保护No fuse switch, dry burning preventing device, a water system protection device, high temperature limit protection, temperature deviation alarm, overpressure, overload, lack of water, lack of equal protection
电源配置Power configuration			220V/380V 60/50Hz
