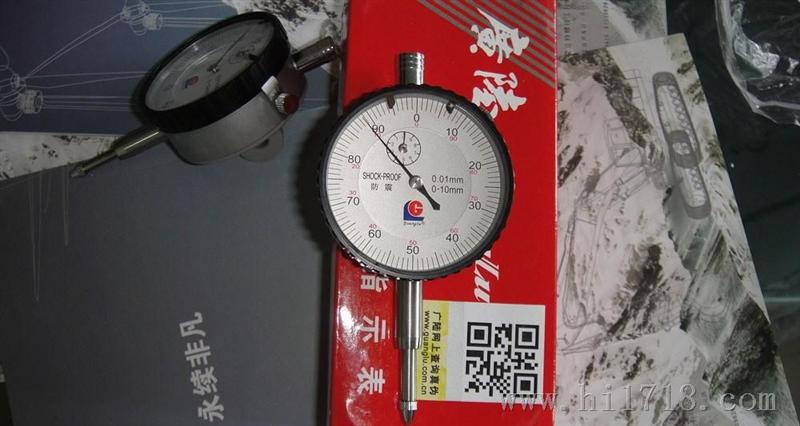

产品实物图：
各项技术参数：
分度值 | 量程 | 货 号 | 表盘读数 | 允许误差 | 测量力 | 备 注 |
0.01mm | 5mm | -130D | 0-100 | 14μm | ≤1.5N | (LB224.5)2.3.4.5.6. |
0.01mm | 5mm | 321--1D | 0-100 | 14μm | ≤1.5N | (LB224.6)1.2.3.4.6.7. |
0.01mm | 5mm | 321--2D | 0-50 | 14μm | ≤1.5N | (LB238.8)2.3.5.6.8.9.10. |
0.01mm | 10mm | -131D | 0-100 | 18μm | ≤1.5N | (LB238.1)1.2.3.4.6.7. |
0.01mm | 10mm | 321--1D | 0-100 | 18μm | ≤1.5N | (LB238.2)2.3.5.6.10. |
0.01mm | 10mm | 321--2D | 0-100 | 18μm | ≤1.5N | (LB238.3)2.3.5.6.8.9.10. |
0.01mm | 10mm | 321--3D | 0-100 | 18μm | ≤1.5N | (LB238.5)2.3.4.5.6. |
0.01mm | 20mm | -132D | 0-50 | 20μm | ≤2.0N | (LB240.1)1.6.7. |
0.01mm | 25mm | -133D | 0-100 | 25μm | ≤2.2N | (LB240.3)1.6.7. |
0.01mm | 30mm | -134D | 0-100 | 30μm | ≤2.2N | (LB256.5)1.6.70 |
0.01mm | 30mm | 321--1D | 0-100 | 30μm | ≤2.2N | (LB256.6)1.6.7. |
.001″ | .25″ | -231D | 0-100 | .0020″ | ≤1.5N | (LB260.7)1.6.7. |
.0005″ | .25″ | -232D | 0-100 | .0010″ | ≤1.5N | (LB262)1.6.7. |
.001″ | .5″ | -233D | 0-100 | .0020″ | ≤1.5N | (LB270.7)1.6.7. |
.0005″ | .5″ | -234D | 0-100 | .0010″ | ≤1.5N | (LB271)1.6.7. |
.001″ | 1″ | -235D | 0-100 | .0040″ | ≤2.2N | (LB280.7)1.6.7. |
.0005″ | 1″ | -236D | 0-100 | .0015″ | ≤2.2N | (LB281)1.3.6.7 |
.001″ | 2″ | -237D | 0-100 | .0050″ | ≤2.5N | (LB290)1.3. |
.001″ | 2″ | 321-237-1 321-237-1D | 0-100 | .0050″ | ≤2.5N | (LB290.1)1.3.12. |
本公还供应日本三丰，
桂林、威海、青量、哈量、上量、等各个国产品牌规格的数显、指针，百千分百等。如有疑问请咨询；
联系方式：0755-27918161
13556867797 13李生
