- 产品品牌：
- OEM
- 产品型号：
- 55型
- 结构：
- 单筒望远镜
- 功能类型：
- 微光望远镜
- 用途：
- 军用望远镜

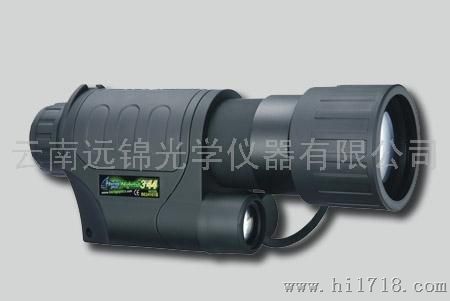

35/55型一代加微光夜视仪
（手持式） R-35/Nightfall-R-55 portable hand held night vision devices 产品简介： R-35/R-55-1型高清晰夜视仪是一款紧凑型手持式微光夜视仪。其5倍的放大倍率、先进的光学系统及成像明亮的高性能一代加微光管将带给您的是一个清晰、锐利的观察效果。内置一款远距离红外激光照明器，保证您在全黑的环境中，同样可以清晰的进行观察。同时具有安全的防强光功能、无眩光，不会让黑暗影响了您的观察力。R-35/R-55型夜视仪应用范围极为广泛，比如微光下打猎，爬山，垂钓，野营，划船，观察等一些户外活动，也适用于森林防火，公安、武警、海关、边防、缉私、缉毒、治安守卫的夜间巡逻，侦查取证。是公安部门、武警部队、特警部队、及守护巡逻的理想设备。 Our night vision monoculars R-35 and R-55 are compact and good-looking portable hand held night vision devices.By utilizing their high magnification,excellent optical systems and advanced Gen 1 image intensifier tube, the R-35/R-55 will bring you quite bright and sharp images. The durable, rubber armor housing is perfectly fit for harsh field conditions and some outdoor activities for civilian use and military use, such as hunting ,climbing ,fishing ,camping and viewing at low light condition, also can be used for forest-fire prevention,public security,armed police,custom,frontier defence,suppress smuggling,drug smuggling investigation and night patrol for guards,helping investigation and obtaining evidence etc. In one word,R-35 and R-55 are fantastic night vision units,They’re just for you! 主要性能指标| 放大倍率，x | 3 5 |
| 物镜直径，mm | 44 50 |
| 镜头系统 | 50mmF/1.2 80mmF/1.7 |
| 视距,m | 19/63 16/52 |
| 视场角,° | 18 12.5 |
| 聚焦范围,m | 1.5 to infinity 1.0 to infinity |
| 出瞳直径,mm | 6 |
| 眼睛间隙,mm | 15 |
| 目镜屈光度,dptr | +4,-4 |
| 工作电压,v | 一节1.5V普通电池(RG-35) |
| 一节3.6V锂电池(RG-55) | |
| 连续工作时间，开红外,hour | 高达 20 |
| 连续工作时间，不开红外,hour | 高达 60 |
| 整机尺寸,mm | 183×81×61 203×81×61 |
| 重量,g | 530 613 |
| 观察距离,m | 200/150 220/175 |
| 红外功率,mw | 25≤ |
| 红外波长,um | 850 |
| 红外有效距离,m | 25 |
| 防水等级 | IPX4 |
| 工作湿度,% | 93 |
| 工作温度,℃ | -30°to+45° |
| 储存温度, ℃ | 0°to+60° |
| Lens magnification ,x | 3 5 |
| Objective lens diameter,mm | 44 50 |
| Lens system | 50mmF/1.2 80mmF/1.7 |
| FOV at distance 100m/110yards,m | 19/63 16/52 |
| Field of view,deg | 18 12.5 |
| Focus range,m | 1.5 to infinity 1.0 to infinity |
| Exit pupil diameter,mm | 6 |
| Eyepiece Dioper adjustment,dptr | +4,-4 |
| Eye relief,mm | 15 |
| Power supply,v | AA battery (one by 1.5V) for RG-35 |
| CR-123 3V battery (one) for RG-55 | |
| Battery life IR on,hour | Up to 20 |
| Battery life IR off,hour | Up to 60 |
| Overall dimensions,L×H×W,mm/in | 183×81×61 203×81×61 |
| Weight,g | 530 613 |
| Effective Distance | |
| Detection range,m | 200/150 220/175 |
| IR power,mw | 25≤ |
| IR wavelength,nm | 850 |
| IR effective distance,m | 25 |
| Environmental Data | |
| IP standard of water-resistence | IPX4 |
| Humidity,% | 93 |
| Operating temperature, ℃ | -30°to+45° |
| Storage temperature, ℃ | 0°to+60° |
