nm 兰色贴片LED PLCC2 Top SMD LED

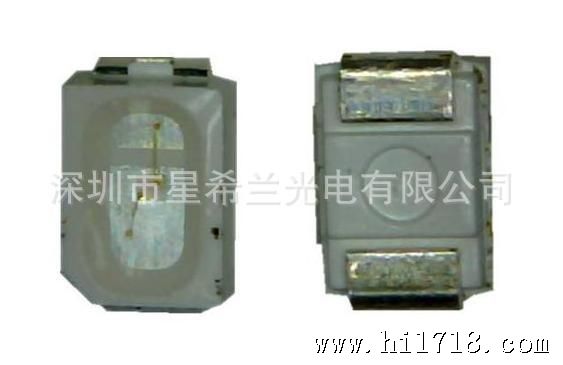

照片：

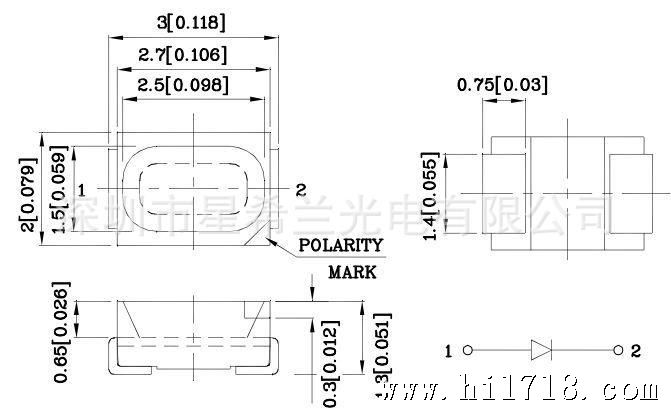

尺寸：
n Initial Electrical/Optical Characteristics (Ta=25℃)
Item | Symbol | condition | Min | Te | Max | Unit |
DC forward Voltage | VF | I=20mA | 3.2 | 3.4 | 3.8 | V |
DC reverse Current | IR | V=5V | ---- | ---- | 10 | μA |

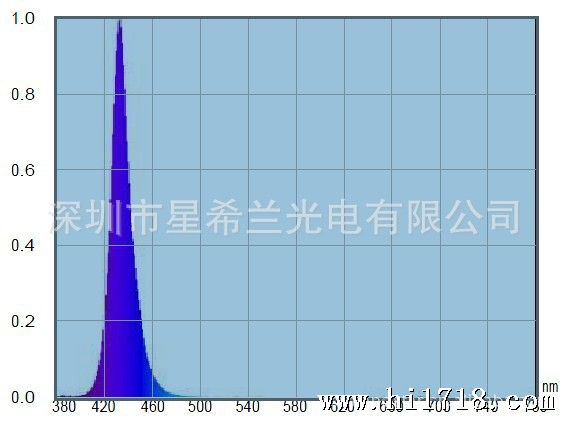

Peak Wavelength | λP | I=20mA | 450 | 455 | nm | |
Spectrum Radiation Bandwidth | Δλ | I=20mA | ---- | 18 | ---- | Nm |
Radiant intensity | IE | I=20mA | 120 | 200 | mcd | |
Radiant power | Φe | I=20mA | 4 | 6 |
| mW |
50%Power Angle | 2θ1/2 | I=20mA | ---- | 120 | ---- | deg |
