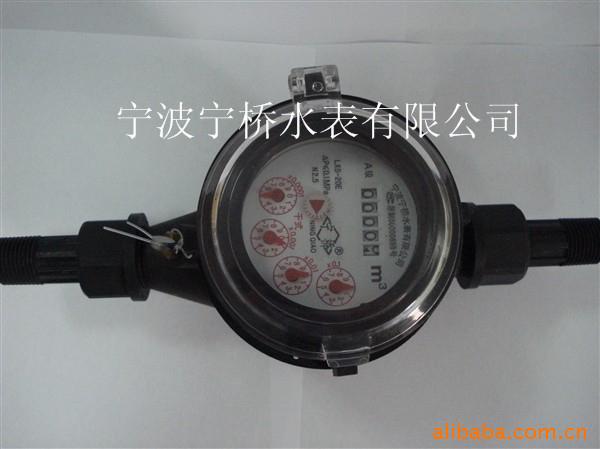

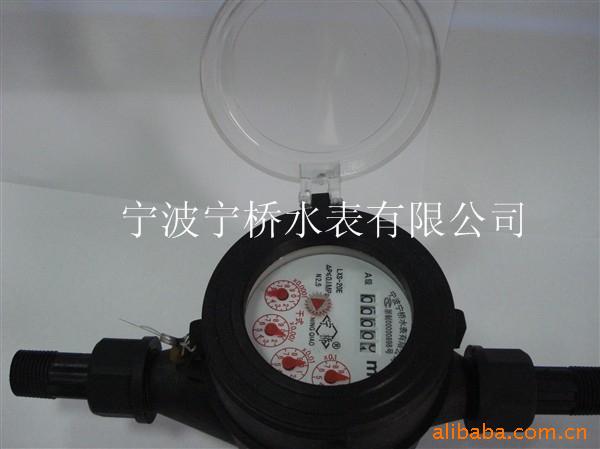

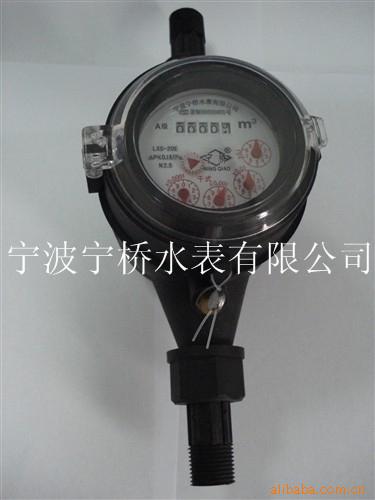

供应LXS-15E黑色尼龙全塑料干式水表Multi Jet Dry Type

   本系列产品采用磁力传动，将叶轮与计数器隔离，计数器单独密封不接触水，并做真空处理。使水表计数器度数清晰，且有防冰冻的特点。适用于水质恶劣的管道或天气较冷的地方。部分产品计数器可360度转动，方便查表。

该系列水表是全塑料环保型产品，采用指针，字轮组合显示，具有读数清晰方便，始动流量小，经济实用.

本产品表壳采用高强度工程塑料注射而成。对水质不造成二次污染，不含重金属，安全卫生。

产品可以回收利用，不对环境造成污染，环保质优。

防腐能力强，强度高，性能稳定，使用寿命长。

该产品有湿式、液封、干式等多种型号可供选择。

Detailed Product Description

1.Multi Jet Dry Dial
2.ISO4064, Class B.
3.Plastic body (UV stabilized)
4.External calibration device
5. Anti-magnetic

Multi Jet Dry Dial Plastic water  flowmeters

APPLICATION

Measuring the volume of cold potable water passing through  the  pipeline.

FEATURES
 Completely plastic shell, solid and robust design, long service  guaranteed.
High quality materials fiberglass reinforced polymerization amine, corrosion  resistance.
Pole ring magnet polymer coating as protection against   deposits.
The measuring mechanism can be  exchanged.
Anti-magnet.
External calibration device.
Large measuring range high flow accuracy.
Steady curve characteristics.
Measuring accuracy is up to ISO4064, Class B.
Overload flowrate: Qs=2Qp  (Qn=nominal  flowrate)

WORKING CONDITION

Water temperature≤50

Water pressure≤ 10bar   (16 bar on  request)

MAXIMUM PERMISSIBLE ERROR

In the lower zone from q_mininclusive up to but excluding q_tis ±5%

In the upper zone from q_tinclusive up to and including q_sis  ±2%
