| 品牌 | 瑞士TA | 型号 | TA HITE 400/700 |
| 测量范围 | 415mm/715mm（m） | 误差 | 0.0025mm |
| 显示方式 | 电子数显 | 电源电压 | 220（V）（V） |
I.主机Machine
订货号 Order No. | 描述 Dcription | 规格和尺寸 Model and Size | ||
TA HITE 400测高仪 | 400 | |||
00730044 | TA HITE 700测高仪 | 700 | ||
以上每台测高仪(含控制面板)包含下组件 Each set above with control panel consists of following components | ||||
标准测头安装座一个 1 Standard insert holder | l | l | ||
0 | 测球直径为5 mm的标准测头一只 1 Standard 5mm measuring probe | l | l | |
0 | 名义尺寸为6.35 mm的校验件一个 1 Master piece with nominal size 6.35 mm | l | l | |
00760226 | 1内置气浮 1 Electric pump for creating the air-cushion | l | l | |
00760157 | 6V可充电电池一个 6V rechargeable battery | l | l | |
0 | 电源适配器一个, 110 ~ 240伏, 50 ~ 60赫兹输入 1 Mains adapter, 110 to 240 Vac/50 to 60 Hz | l | l | |
0 | 带欧式插头的电源线一根 1 Cable EU for mains adapter | l | l | |
0 | 带美式插头的电源线一根 1 Cable US for mains adapter | l | l | |
II. 用户现场安装Installation at customer site
机器将由卖方工程师在用户处现场安装,并按出厂验收条件完成验收.用户提供要的辅助条件
The machine will be installed by a certified engineer from the seller and complete the inspection according to the seller’s specification.
III. 在安装现场培训Training on customer site
机器的使用操作培训将由卖方工程师在用户现场主持,培训时间为0.5~1天.买方的操作员应具备基本的计量基础知识.
The operation training will be take on customer site with a period of three days, the operators from the buyer should have a basic knowledge on Metrology.
IV. 质量Warranty
自在卖方完成验收之日起,卖方提供12个月的保修期,保修期满后提供有偿服务.
The seller provid 12 months of warranty since the date of inspection.Paid service will be provided for the long term.
V.销售条件Sal term
技术描述Technical Dcription
VI. 主要特征Key Featur

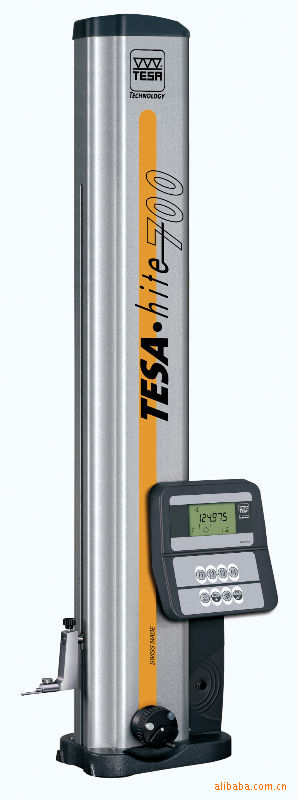

集TA 25年的研发经验,推出比的测高仪TA-HITE 400/700
她定成为车间的配置
- • 更大的测量范围
- • 电子装置具有IP65的护等级以液体和灰尘的侵入
- • 内置气浮，已固定安装的面板
- • 采用TA的技术,在测量直径时自动寻找顶点
- • 可进行平行度和垂直度的测量
- • TA的光电测量系统
- • 与MICRO-HITE兼容的附件,包括测杆及夹持块
- • 每台测高仪带有SCS校准证书
The new TA-Hite 400 / 700 rult from the technology and innovation that TA has developped for more than 25 years
The exceptional characteristics offer the most attractive PRICE-PERFORMANCE ratio on the market and make it an sential instrument for the workshop.
• Large measuring span
• Electronics completely protected against liquids or dust penetration
• Built-in air cushion, and fixed panel
• Automatic diameter measurement using TA’s patented system which determinat
the culmination point
• Paralleli and perpendicularity measurements
• TA opto-electronic measuring system (patented)
• Compatible with TA MICRO-HITE accsori, including measuring inserts and holder
• SCS calibration certificate delivered with each instrument
VII. 技术指标 Performance Specifications
Model/型号规格 |
| TA Hite | |
400 | 700 | ||
测量范围/ Measuring span | mm | 415 | 715 |
应用范围/ Application range 配标准附件/ With standard accsory 配订货号的测头座 With probe insert holder No. 配订货号S的测头座 With probe insert holder No. S | mm
|
570
625
795 |
770
925
1095 |
允许误差(带标准附件)/ Max. permissible error, with standard accsory | (2.5+4L)μm, (L单位为米/L in m) | ||
重复性(带标准附件)/ Repeatability, with standard accsory | 平面:2μm 孔内: 3μm | ||
运动速度/Max. Displacement speed | 500 mm/s | ||
测量力/Measuring force | 1.5N&plun;0.5N | ||
机械垂直度/ Mechanical Perpendicularity | μm | <10 | <15 |
主机重量/ Net weights, without panel and battery pack | kg | 27 | 32 |
充电使用时间/ Life time of the rechargeable battery | 60小时/ 60hours | ||
VIII. 环境要求Required Specification
- 存储温度范围: -10℃~ 60℃ - 操作温度范围: 10℃~ 40℃ - 工作温度: 20℃&plun;0.5℃ - 相对湿度: 80% - 工作电压:可充电电池6伏,750毫安或110 ~ 240伏, 50 ~ 60赫兹交流电压输入 | - Storage temperature range: -10℃to 60℃ - Operating temperature range: 10℃to 40℃ - Working temperature range: 20℃&plun;0.5℃ - Relative humidity: 80%, noncondensing - Power supply: Rechargeable battery pack, 6V,750mA or 110 to 240 Vac , 50 to 60 Hz |
IX. 控制面板测量功能/ Functions of Control Panel
1)主要特点/ Key Featur:
l 更大的测量范围 l 内置气浮,固定安装的控制面板 l 0.0001,0.001,0.01mm分辨率选择 l 测量范围内任意位置清 l 控制面板IP65护等级 l RS232数输 | l Large measuring span l Build-in air cushion,and fixed panel l 0.0001,0.001,0.01 mm in rolution l Zero-setting of display anywhere within the measuring range l Electronics completely protected against liquids or dust penetration l RS232 dial output for safe data tranission |
