| 品牌 | HP/Agilent | 型号 | 86120B |
| 用途 | 波长计 |
Description: The HP 86120B Multi-Wavelength Meter is a Michelson interferometer-based instrument that measures wavelength
and optical power of laser light in the 700 to 1650 nm wavelength range. Simultaneous measurements of multiple laser
lines are performed allowing measurements of WDM (wavelength division multiplexed) signals and multiple lines of Fabry-Perot
lasers. Each laser line is umed to have a linewidth of less than 10 GHz.
This unit has the following specifications:
Wavelength
Range: 700 to 1650 nm (182 to 428 THz)
Absolute accuracy: laser lines separated by >30 GHz &plun;3 ppm (&plun;0.005 nm at 1550 nm, &plun;0.004 nm at 1310 nm)
Differential accuracy: &plun;2 ppm
Minimum resolvable separation: 20 GHz (0.16 nm at 1550 nm, 0.11 nm at 1300 nm) (equal power lines input)
Display resolution: 0.001 nm, normal update mode; 0.01 nm, fast update mode
Power
Calibration accuracy: &plun;0.5 dB (at &plun;30 nm from 780, 1310, and 1550 nm)
Flatness: (30 nm from any wavelength)
1200 to 1600 nm l &plun;0.2 dB
700 to 1650 nm l &plun;0.5 dB
Linearity: &plun;0.3 dB
Polarization dependence:
1200 to 1600 nm &plun;0.5 dB
700 to 1650 nm l &plun;1.0 dB

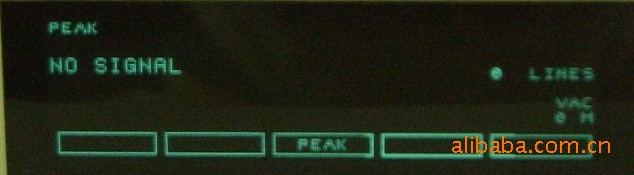

Display resolution: 0.01 dB
描述：惠普86120B多波长计是一个为Michelson基础的仪器波长的措施
和光功率在700至1650 nm的波长范围的激光。激光同时测量多个
允许线进行测量的WDM（波分复用）信号和的Fabry - Perot多行
激光器。每个激光线假定有一个小于10 GHz的线宽。
本机有以下规格：
波长
范围：700至1650nm（182至428兆赫）
：按“30GHz 3 ppm的分离激光线（&plun; 0.005在1550 nm波长，&plun; 0.004在1310 nm波长）
差分：&plun; 2 ppm
小可分辨分离：20GHz（波长为1550 nm 0.16，在1300 nm 0.11nm）（相当于电力线路输入）
显示分辨率：0.001纳米，正常的更新模式; 0.01纳米，快速更新模式
电源
校准：&plun; 0.5 dB（在&plun; 30 nm的780，1310和1550 nm）
平整度：（30纳米的任何波长）
1200?1600 nm的升&plun; 0.2 dB的
700至1650 nm升&plun; 0.5分贝
线性度：&plun; 0.3 dB的
偏振依赖性：
1200?1600 nm的&plun; 0.5分贝
700至1650 nm升&plun; 1.0分贝
显示分辨率：0.01分贝
现货供应,租售即可!
