| 品牌 | Chinscope | 型号 | 98B |
| 测量范围 | 1-3M | 测量 | |
| 尺寸 | 10（mm） | 重量 | 1.0（kg） |
Video BorcopeUser Guide

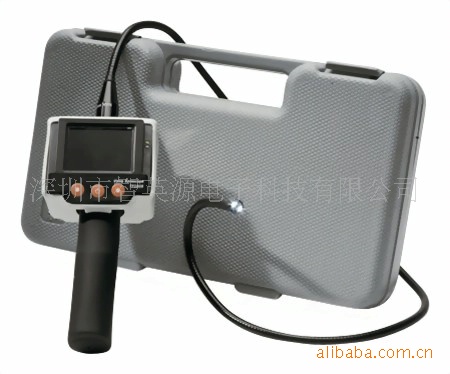

Video Borcope with Orange Rubber Cover
PE Carry Case
PE covered metal tube: diameter 6.8 mm; with ABS handler: 114.9 cm long
l Water ristant IP 67 camera head:outer diameter 10.0 mm,with two dimmable LED
l Lens:F#:2.8viewableof angle:54°;Focal distance:3 ~ 6 cm
l 2.4”TFT LCD; 320 x 234 rolution Powered by 4 x 1.5V AA batteri (Not included)
l 3 buttons: On/Off ; LED light Up / Down
l NTSC TV video I output (with video wire) Magnetic & hook attachments for the camera head
l Model: TF2809
l Degree of proteion: IP20
l 4 X 1.5V AA
l CL 1 LASER PRODU
l Clified with EN 60825-1:2007
Technical Data
2.4”TFT rolution | 320 x 234 Pixels |
Lens sensor rolution | 320 x 240 Pixels |
Sensitivity | 0.7V(Lux.sec) |
Color Mosaic | RGB Bayer pattern |
White comparison | Automatic |
Exposure to light | Automatic |
Video format | NTSC composite video |
Camera illumination | 2 LEDs, white |
Handler end I port | NTSC signal out |
Power by | 4 X 1.5V AA |
Power Consumption | 200 mA |
Ambient/operation temperature | 0 to 45 ℃ |
TV Cable length | Approx 1.5 M |
Total length of device | 114.9 + - 2.0 cm |
Metal tube length | 88.0 + - 2.0 cm |
Minimum bending radius | 4.5 cm |
Diameter of camera head | 10.0 mm |
Lens coverage | 54? |
Short distance focus | 3 ~ 6 cm |
Weight without accsori | Approx. 370 gm |
型号：98B 镜头直径：10mm 软管直径：6.8mm 软管长度：880mm 总长：1149mm 镜头及软管水（IP67） 显示屏：2.4″ 镜头像素：320*240 视角：54° 焦距：20mm-80mm 两颗可调高度LED白灯 影像制式：NTSC 电源：4*1.5（AA） 视频线长：1000mm 附磁铁头及钩子 说明书一份 PE工具箱包装
装箱规格： 6个/箱 外箱尺寸：46.5CM*34CM*21.5CM 毛重/箱：6KGS
PORTABLE VIDEO BORCOPE Model: 98B Len Dia.:10mm Flexible Tube Dia.:6.8mm Flexible Tube Length.:880mm Total Length:1149mm Waterproof at flexible tube and len. LCD Monitor:2.4″TFT LCD Pixels: 320*240 pixels View Angel: 54° Focal Distance: 30mm-80mm Two White LED TV Standard: NTSC Powered by 4*1.5（AA）Batteri Cable Length: 1000mm Deploy Magnetic and Hook Instruion 1 pce PE Tool box 1 pce
Packing details： 6pcs/N N Size：46.5CM*34.0CM*21.5CM G.W./N：6KGS
价格条款：工厂交货 付款方式：现金 包装：彩盒 交货期：20天 质量/：CE 生产能力：5000台/月
| ||||||
| ||||||
