| 品牌 | 频率计 | 型号 | CMC251 |
CMC251
1 Hz to 100 MHz (CH 1), 80 MHz to 1.3 GHz (CH 2) &plun;1 ppm Time Base Period Average, Period, Frequency, Totalize Self-test Display Hold Remote Start/S One Year Warranty
Applications
Training Manufacturing Production Test Field Repair Bench Calibration and Repair Product Design Laboratory and Research Education
CMC251

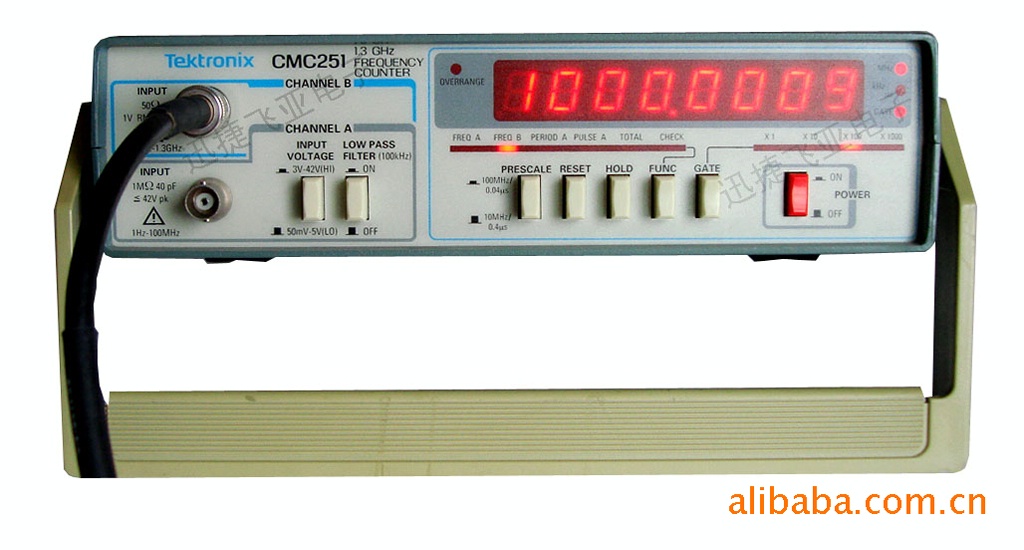

The CMC251 1.3 GHz Multifunction Counter measures the frequency of sine, square and triangle waves from 1 Hz to 1.3 GHz. The CMC251 also provides period, totalize and pulse width measurements. The counter has two input channels. Channel A is a standard 1 MΩ input for frequency measurements up to 100 MHz. Channel B is a 50 Ω terminated input for use in high-frequency systems. This counter is of interest to radio s because of its ability to measure high-frequency systems. The temperature-compensated, crystal-controlled time base is stable to &plun;1 part per million per year.
CMC251
1 Hz to 100 MHz (CH 1), 80 MHz to 1.3 GHz (CH 2) &plun;1 ppm Time Base Period Average, Period, Frequency, Totalize Self-test Display Hold Remote Start/S One Year Warranty
Applications
Training Manufacturing Production Test Field Repair Bench Calibration and Repair Product Design Laboratory and Research Education
CMC251
The CMC251 1.3 GHz Multifunction Counter measures the frequency of sine, square and triangle waves from 1 Hz to 1.3 GHz. The CMC251 also provides period, totalize and pulse width measurements. The counter has two input channels. Channel A is a standard 1 MΩ input for frequency measurements up to 100 MHz. Channel B is a 50 Ω terminated input for use in high-frequency systems. This counter is of interest to radio s because of its ability to measure high-frequency systems. The temperature-compensated, crystal-controlled time base is stable to &plun;1 part per million per year.北京市海淀区清河新城2号楼2单元1704
