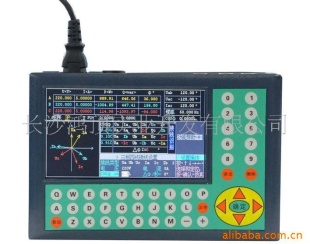

三相电能表现场校验仪

CS1000B三相电能表现场校验仪设计依据是《JJG596-1999电子式电能表检定规程》 、《JJG307-2006机电式交流电能表计量检定规程》和《JJG597-2005交流电能表检定装置检定规程》；测量模块由DSP+16位AD+CPLD组成，显示模块采用TFT8寸彩色液晶和触摸屏组成；全中文菜单，操作界面友善，仪器面板不需设置按键；输入回路及信号调理电路沿袭本公司已长期稳定运行多年之经验，长期稳定性有保障；仪器具有谐波分析功能，能同时还原两路含有2-31次谐波的波形及各频谱分量的频谱图，大矢量图，多种颜色区分各矢量关系；快速对三相三线系统48种接线方式进行检查，并给出结果；系统能存储200块电能表检测结果，备有接口及管理软件。是电能计量部门\用电监察部门\技术监督部门使用的理想工具。

2．技术指标：

2.1电压：

60V、120V、240V、480V、量程自动切换

测量范围：

10V~480V

准确度等级：

0．1级、0．05级

2.2电流：

测量范围:

0.001~20A    (直通) 0.2A、1A、5A、20A..量程自动切换

0.01~20A      (钳表) 1A、5A、20A..量程自动切换

10A~500A/1000A       (大钳表，单一量程，可选100A/200A/300A/500A/1000A)

  准确度等级: 0.1%

经钳表接入时:    0.2%

经大钳表接入时:  0.5%

2.3有功功率:  0.1% (0.05A--24A, 30V--480V,PF>=0.45)

      经钳表接入时: 0.2%

      经大钳表接入时: 0.5%

2.4 无功功率:    0.2% (0.05A--24A, 30V--480V,PF>=0.45)

      经钳表接入时: 0.3%

      经大钳表接入时: 0.5%

2.5 相位:     0~359.99      0.05°

2.6 频率:    40~70Hz       0.005H_Z(40--70H_Z)

2.7 功率因数:    -1.0000~+1.0000              0.01(0.05A--24A, 30V--480V)

2.8 有功电能:    0.1(RD) (0.05A--20A，30V--480V，PF>=0.45，直通)

2.9 无功电能:    0.2(RD) (0.05A--20A，30V--480V，PF>=0.45，直通)

2.10    脉冲输出常数:

             CH=CL*10000，TTL电平，,20mA负载能力，,湿性脉冲，

                              脉冲输入范围:0.01--200,000H_Z

2.11     辅助电源:

当有外接电源时用市电,当没有外界电源时,自动切换到电压信号源          AC80～264V，50H_Z，<=20VA

2.12 预热时间:  <=5分钟

2.13 外形尺寸:  375×256×135mm(L×W×H)

2.14 重量:   <3Kg

全国统一客服电话: 400-6599-114 ！

CS1000B three-phase power meter calibrator site design is based on the "JJG596-1999 Electronic Energy Meter registered a point of order", "JJG307-2006 mechanical and electrical AC power meter verification of order" and "JJG597-2005 exchange Meter testing equipment verification regulation" ; Measurement modules from the DSP +16-AD + CPLD components, modules used TFT8-inch color LCD touch screen and composed the entire Chinese menu, the friendly interface, the panel need not set up key equipment, and input signal conditioning circuit and the circuit followed Company has long-term stable operation of many years of experience, long-term stability of protection equipment with harmonic analysis, the reduction can also contain both 2-31 harmonic wave spectrum and the amount of frequency spectrum, the vector, multi - Distinguish between the various color vector; fast on the three-phase three-wire system 48 kinds of ways to inspect wiring, and gives results; system can store 200 Meter test results, in both interface and management software. Energy sector is the measurement \ electricity and supervision departments \ technical supervision departments to use the ideal tool.
2. Specifications:
2.1 Voltage:
60V, 120V, 240V, 480V, automatically switch range
Survey:
10V ~ 480V
Accuracy of the ratings:
0.1, 0.05
2.2 Current:
Survey:
0.001 ~ 20A (through) 0.2A, 1A, 5A, 20A .. range automatically switch
0.01 ~ 20A (Qianbiao) 1A, 5A, 20A .. range automatically switch
10A ~ 500A/1000A (Qianbiao large, a single range, optional 100 A/200A/300A/500A/1000A)
    Accuracy of the ratings: 0.1%
When the Qianbiao access: 0.2%
When the big Qianbiao access: 0.5%
2.3 Active Power: 0.1% (0.05A--24A, 30V - 480V, PF> = 0.45)
When the Qianbiao access: 0.2%
When the big Qianbiao access: 0.5%
2.4 reactive power: 0.2% (0.05A--24A, 30V - 480V, PF> = 0.45)
When the Qianbiao access: 0.3%
When the big Qianbiao access: 0.5%
2.5 phase: 0 ~ 359.99 0.05 °
2.6 frequency: 40 ~ 70Hz 0.005HZ (40 - 70HZ)
2.7 Power Factor: -1.0000 ~ +1.0000 0.01 (0.05A--24A, 30V - 480V)
2.8 Active Power: 0.1 (RD) (0.05A--20A, 30V - 480V, PF> = 0.45, Direct)
2.9 reactive power: 0.2 (RD) (0.05A--20A, 30V - 480V, PF> = 0.45, Direct)
2.10 pulse output constant:
         Current
  Constant 0.2 (A) 1 (A) 5 (A) 20 (A)
PL / kW ＆#8226; h
              CH = CL * 10000, TTL level,, 20 mA load capacity, moist pulse,
     Pulse input range :0.01 - 200, 000 HZ
2.11 auxiliary power:
When an external power source when using electricity, when no outside power, the automatic switch to the voltage signal source AC80 ~ 264V, 50HZ, <= 20VA
2.12 Warm-up time: <= 5 minutes
2.13 Dimensions: 375 × 256 × 135mm (L × W × H)
2.14 Weight: <3Kg
