| 品牌 | VTI | 型号 | SCC1300-D02 |
| 种类 | 角度 | 材料 | 聚合物 |
| 材料物理性质 | 缘体 | 材料晶体结构 | 单晶 |
| 制作工艺 | 集成 | 输出信号 | 数字型 |
• &plun;100 º/s angular rate measurement range
• &plun;2 g 3-axis acceleration measurement range
• Angular rate measurement around X axis
• Angular rate sensor exceptionally insensitive to mechanical vibrations and shocks
• Superior bias stability for MEMS gyroscopes (<1º/h)
• Dial SPI interfacing
• Enhanced self diagnostics features
• all size 8.5 x 18.7 x 4.5 mm (w x l x h)
• RoHS compliant robust packaging suitable for lead free soldering process and D mounting
• Proven capacitive 3D-MEMS technology
• Temperature range -40 °C...+125 °C

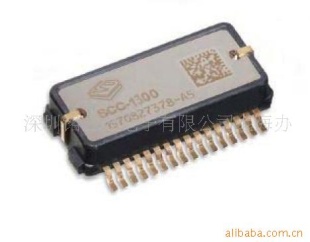

SCC1300-D02 is a combined high performance gyroscope and accelerometer component. The sensor is based on VTI's proven capacitive 3D-MEMS technology. The component integrates angular rate and acceleration sensing together with flexible separate dial SPI interfaces. all robust packaging guarantees reliable operation over product lifetime. The housing is suitable for D mounting and the component is compatible with RoHS and ELV directives.
SCC1300-D02 is designed, manufactured and tested against high stability, reliability and quality requirements. The angular rate and acceleration sensors provide highly stable output over wide ranges of temperature and mechanical noise. The angular rate sensor bias stability is in the elite of MEMS gyros and it is also exceptionally insensitive to all mechanical vibrations and shocks. Component has several advanced self diagnostics features.
