| 品牌 | 海曼 | 型号 | TPS434/3119 |
| 种类 | 温度 | 材料 | 金属 |
| 材料物理性质 | 半导体 | 材料晶体结构 | 非晶 |
| 制作工艺 | 集成 | 输出信号 | 模拟型 |
| 护等级 | 1 | 线性度 | 1（%F.S.） |
| 迟滞 | 1（%F.S.） | 重复性 | 1（%F.S.） |
| 灵敏度 | 1 | 漂移 | 1 |
| 分辨率 | 1 |
原装无铅现货 TPS434 海曼 热释温度感器
TPS 434 - Thermopile Detector Extremely Small Absorber Size
Description

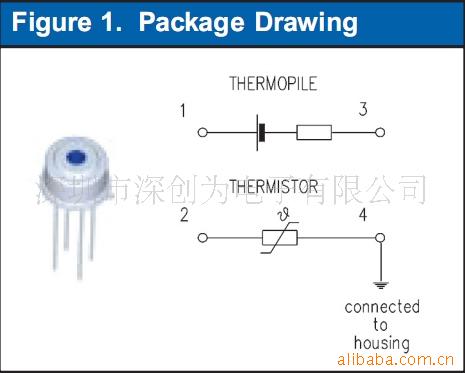

The TPS 434 thermopile sensor in TO 5 te housing employs a chip of 0.5 x 0.5 mm2 absorber size and a
30 k thermistor as temperature reference. The round window opening is equipped with a 5.5 mm longp
(standard) infrared filter. The sensor shows a flat sensitivity characteristic over the wavelength.
The TPS 434 can be equipped with a G9 (8 ... 14 m) filter for precision pyrometers (TPS 434 G9).
Features
Extremely Small Absorber Size - for High Precision Pyrometers
Thermistor Temperature Reference included
Low Temperature Coefficient of Sensitivity
Applications: Ear Thermometers and Pyrometers

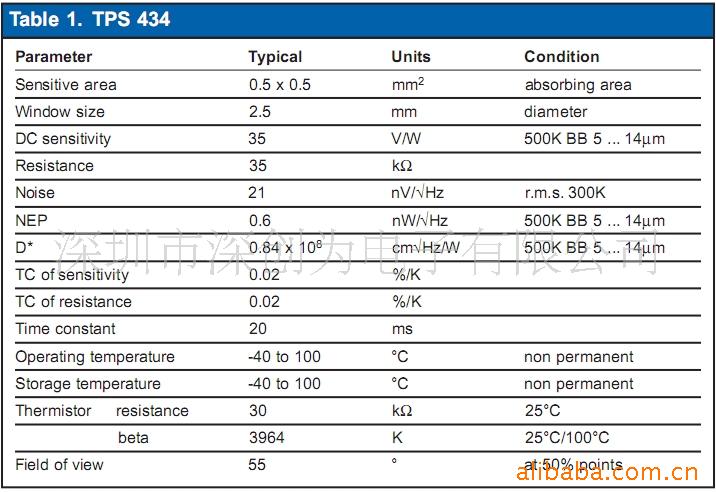

Table 1. TPS 434
Parameter Tical Units Condition
Sensitive area 0.5 x 0.5 mm2 absorbing area
Window size 2.5 mm diameter
DC sensitivity 35 V/W 500K BB 5 ... 14m
Resistance 35 k
Noise 21 nV/√Hz r.m.s. 300K
NEP 0.6 nW/√Hz 500K BB 5 ... 14m
D* 0.84 x 108 cm√Hz/W 500K BB 5 ... 14m
TC of sensitivity 0.02 %/K
TC of resistance 0.02 %/K

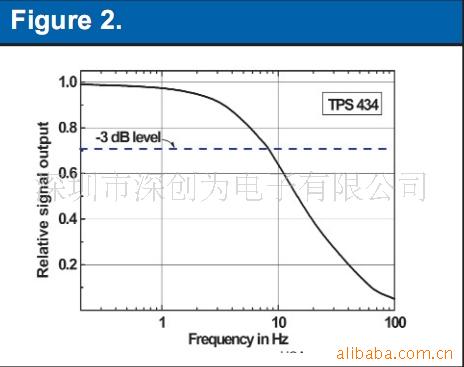

Time constant 20 ms
Operating temperature -40 to 100 °C non permanent
Storage temperature -40 to 100 °C non permanent
Thermistor resistance 30 k 25°C
beta 3964 K 25°C/100°C

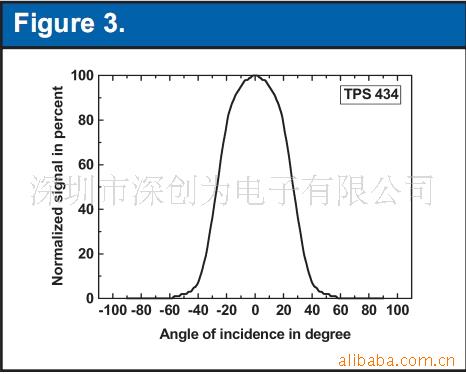

Field of view 55 ° at 50% points
